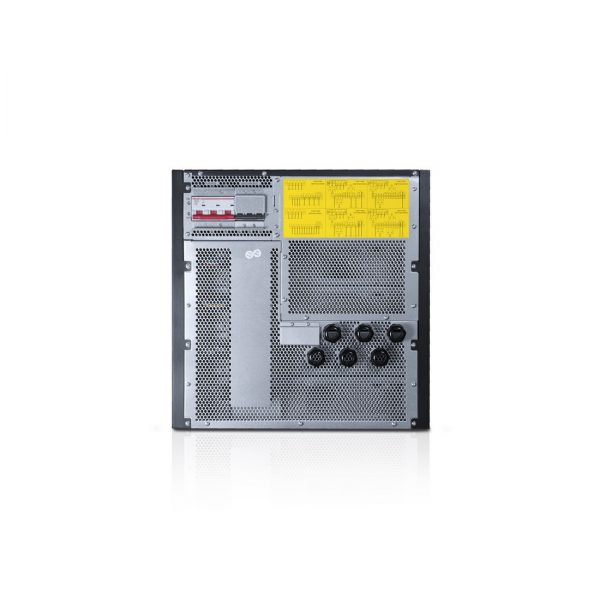

Modular UPS Online – EP(RM40) / 10X [ 40KVA ]


The Rack modular, Scalable, Hot-swappable, Online double conversion UPS ranging from 10 to 50kVA, with its compact structure, is the ideal choice for small and medium data center.

  • Type UPS – Online
  • Full power – 40kVA (40kW)
  • Active power – 40000
  • working range AVR: 304-478V
  • Battery life at 100% load: Configured individually



Compare
Specifications
  • Type   — — — —- –  UPS Online
  • Full power   — — — —- –  40 kVA (40kW)
  • Active power   — — — —- –  40,000
  • Number Bx phases. / O.   — — — —- –    3/3
  • Input voltage   — — — —- –  380/400 / 415V 3 phase
  • Output voltage   — — — —- –  380/400 / 415V +/- 1.5% Phase 3
  • The output waveform   — — — —- –  Pure Sine
  • Power factor  — — — —- –  1
  • Time switching modes   — — — —- –  0 ms.
  • Input frequency   — — — —- –  40-70Gts +/- 1%
  • Operating range AVR  — — — —- –  304-478V
  • Battery Type  — — — —- –  Lead-acid
  • Voltage / battery capacity  — — — —- –  individually configurable (not supplied)
  • Number of batteries  — — — —- –    40
  • The total battery voltage  — — — —- –  +/- 240V
  • The possibility of connecting external batteries   — — — —- –  Do
  • Bypass mode (bypass)  — — — —- –    Automatic and manual
  • Type of connection of the battery pack  — — — —- –  Terminal
  • Battery life at 100% load  — — — —- –  Configurable individually
  • Noise level  — — — —- –  56dB at 50% load
  • For communication with the PC interface  — — — —- –    RS232
  • Dim  — — — —- –  there
  • Silent Mode   — — — —- –  Yes
  • Protection against full battery discharge  — — — —- –  there
  • Protection against short-circuit and overload  — — — —- –  Yes
  • Overload Protection  — — — —- –  Yes
  • The front control panel  — — — —- –  LCD / LED, touchscreen + keypad
  • color  — — — —- –  Black
  • The type of output connector   — — — —- –  Terminal block
  • Protection class   — — — —- –  IP20
  • Overload capacity  — — — —- –  of 110% in one hour, 125% in 10 minutes, 150% for 1 minute,> 150% within 1 second
  • Form Factor  — — — —- –  Module
  • Dimensions  — — — —- –  D * W * H (mm) 485 * 697 * 575
  • Weight  — — — —- –  131 kg
  • The term of the official warranty  — — — —- –    24 months
